RESISTOR CATEGORIES > ALUMINUM HOUSED WIREWOUND POWER > MVN Horizontal Type & MHN Vertial Type No-Inductive Series

MVN Horizontal Type No-Inductive Series

MHN Vertial Type No-inductive Series

METAL-CLAD WIREWOUND RESISTORS DIMENSIONS - 60W~100W

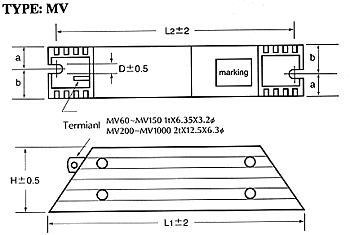

EXTERNAL DIMENSIONS

Type	Dimensions (mm)							MAX Weight (g)
Type	L1	L2	W	H	D	a ?.5	b ?.5	MAX Weight (g)
MV60	115	100	20	40	5.3	8.0	12.0	110
MV80	140	125	20	40	5.3	8.0	12.0	160
MV100	165	150	20	40	5.3	8.0	12.0	200
MV120	190	175	20	40	5.3	8.0	12.0	240
MV150	215	200	20	40	5.3	8.0	12.0	290
MV200	165	150	30	60	5.3	13.0	17.0	460
MV300	215	200	30	60	5.3	13.0	17.0	750
MV400	265	250	30	60	5.3	13.0	17.0	930
MV500	335	320	30	60	5.3	13.0	17.0	1100
MV1000	400	385	50	100	5.3X2			2800

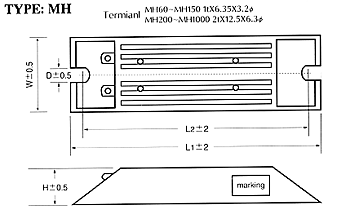

EXTERNAL DIMENSIONS

Type	Dimensions (mm)					MAX Weight (g)
Type	L1	L2	W	H	D	MAX Weight (g)
MH60	115	100	40	20	5.3	110
MH80	140	125	40	20	5.3	160
MH100	165	150	40	20	5.3	200
MH120	190	175	40	20	5.3	240
MH150	215	200	40	20	5.3	290
MH200	165	150	60	30	5.3	460
MH300	215	200	60	30	5.3	750
MH400	265	250	60	30	5.3	930
MH500	335	320	60	30	5.3	1100
MH1000	400	385	100	50	5.3X2	2800

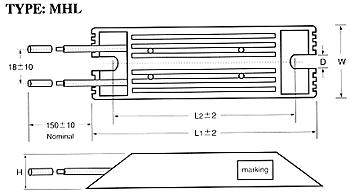

LEAD WIRE CONDUCTOR CROSS-SECTION; WITHSTAND VOLTAGE

Conductor Cross-sectional areas	1.25mm	2 mm	3.5mm
Withstand voltage	2	2	2
2500V	O	-	-
3000V	O	O	O
3500V	-	O	O

Dimensions are the same as MH type
Lead's size to customers' request
