 CR Standard Series
|
|
CR Series
Carbon Film Resistors
|
|
CARBON
FILM RESISTORS CR Series
|
|
1/6W; 1/8W,
1/4W, 1/2W, 1W, 2W, 3W,
CR-12, CR-25,
CR-50, CR-100, CR-200, CR-300
|
|
INTRODUCTION
|
|
Featuring
consistency and stably-controlled, these carbon film resistors with
reasonable prices are widely & largely used in the electronic,
electrical and information industries.
This resistor is a ceramic bar tightly coated with a carbon film which is
composed of carbon separated from organic compound through the treatment
of high-temperature vacuum. After the carbon-coated bar is connected with
proper joint and engraved with grooves, its surface is finished with
epoxy resin so that the bar is enclosed with a protective film.
|
|
|
|
FEATURES
|
- Industry's lower cost and deliver from stock.
- Exceptional long-term stability.
- Exceeds carbon comp MIL-R-11 performance.
- Standard tolerance:?%, ?%
- Variety of packaging-bulk, strip pack, 26mm and
52mm tape and reel, cut and formed or radial Panasert.
|
|
DIMENSIONS:
|
|
|
STYLE
|
DIMENSION (mm)
|
POWER RATING (Watt)
|
VALUE RANGE
|
|
L
|
ФD
|
H
|
Фd
|
|
CR-12
|
3.3?.4
|
1.8?.3
|
28?
|
0.43?.05
|
1/6W ; 1/8W
|
1Ω~10M
|
|
CR-25
|
6.3?.5
|
2.3?.3
|
28?
|
0.5?.05
|
1/4W
|
1Ω~10M
|
|
CR-50
|
9.0?.5
|
3.2?.5
|
26?
|
0.6?.05
|
1/2W
|
1Ω~10M
|
|
CR-100
|
11.5?.0
|
4.5?.5
|
35?
|
0.7?.05
|
1W
|
1Ω~10M
|
|
CR-200
|
15.5?.0
|
5.0?.5
|
32?
|
0.8?.05
|
2W
|
1Ω~10M
|
|
CR-300
|
17.5?.0
|
6.0?.5
|
35?
|
0.8?.05
|
3W
|
1Ω~10M
|
|
|

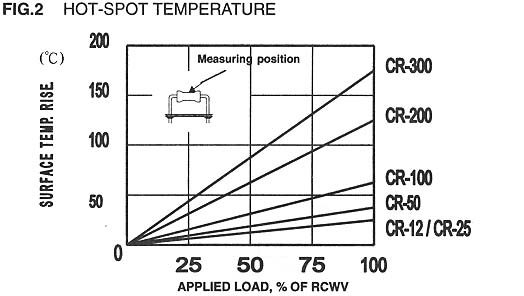

ELECTRICAL
CHARACTERISTICS
|
|
Style
|
CR-12
|
CR-25
|
CR-50
|
CR-100
|
CR-200
|
CR-300
|
|

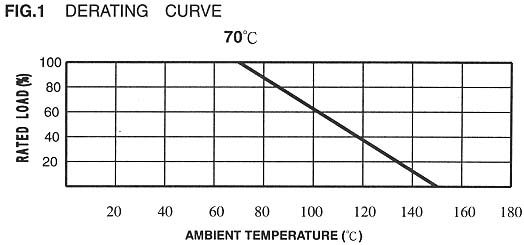

Power Rating 70°C
|
1/6W ; 1/8W
|
1/4W
|
1/2W
|
1W
|
2W
|
3W
|
|
Operating Temp.Voltage
|
-55°C ~ +155°C
|
|
Max. Working Voltage
|
150V
|
250V
|
350V
|
500V
|
500V
|
600V
|
|
Max. Overload Voltage
|
300V
|
500V
|
700V
|
1000V
|
1000V
|
1000V
|
|
Dielectric Withstanding
Voltage
|
300V
|
500V
|
700V
|
1000V
|
1000V
|
1000V
|
|
T.C.R. (PPM)
|
CR-12/CR-25/CR-50
|
CR-100/CR-200/CR-300
|
|
100KΩdown
|
100KΩ~1MΩ
|
1MΩup
|
100KΩdown
|
100KΩ~1MΩ
|
1KΩup
|
|
+350/-500
|
+350/-700
|
+350/-1000
|
+350PPM
|
+350/-500
|
+350/-1000
|
|
|
ENVIRONMENTAL
CHARACTERISTICS
|
|
PERFORMANCE
TEST
|
TEST
METHOD
|
APPRAISE
|
|
Short
Time Overload
|
JIS-C-5202
5.5 : 2.5 times RCWV for 5 seconds
|
?0.75%+0.05Ω)
|
|
Dielectric
Withstanding V.
|
JIS-C-5202
5.7 : in V-Block for 60 seconds
|
By Type
|
|
Temperature
Coefficient
|
JIS-C-5202
5.2 : -55°C ~+155°C
|
By Type
|
|
Insulation
Resistance
|
JIS-C-5202
5.6 : in V-Block
|
≥1000
MΩ
|
|
Solderability
|
JIS-C-5202
6.5 : 230°C for 5?.5 seconds
|
95%
min. coverage
|
|
Resistance
to Solvent
|
JIS-C-5202
6.9 : Trichroethance for 1 min. with ultrasonic
|
no
deterioration
|
|
Terminal
Strength
|
Direct
load for 10 sec. In the direction of the terminal leads
|
≥2.5KG/24.5N
|
|
Pulse
Overload
|
JIS-C-5202
5.8 : 4 time RCWV 10000 cycles(1 sec.on, 25 sec.off)
|
?2%+0.05Ω)
|
|
Load
Life in Humidity
|
JIS-C-5202
7.9 : 40?°C, 90~95% RH at RCWV for 1000 hrs
(1.5hrs. on, 0.5 hrs. off)
|
?3%+0.05Ω)
|
|
Load
Life
|
JIS-C-5202
7.10 : 70°C at RCWV for 1000hrs (1.5hrs.on, 0.5hrs.off)
|
?3%+0.05Ω)
|
|
Temperature
Cycling
|
JIS-C-5202
7.4 : -55°C→room temp.→155°C~→room
temp. for 5 cycles.
|
?1%+0.05Ω)
|
|
Soldering
Heat
|
JIS-C-5202
6.4 : 350?0°C for 3?.5 seconds
|
?1%+0.05Ω)
|
|
|
