RESISTOR CATEGORIES
>
METAL OXIDE FILM RESISTORS
>
Packing Methods and Cut & Forming
Packing Methods and Cut & Forming
Packing methods and Cut & Forming
PACKING METHODS

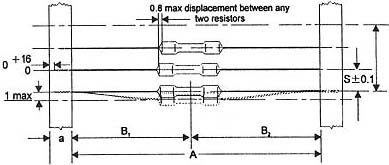

Bandolier for Axial Leads
The resistors are supplied on bandolier ; either 1000 resistors in ammopack or 5000 resistors on reel.
STYLE
DIMENSIONS (mm)
Normal
Miniature
a
A
B1-B2
S
(spacing)
T
(max. deviation of spacing)
TYPE-12
TYPE25S
6 ?.5
52.5 ?.5
1.2
5
1 mm per 10 spacings
0.5mm per 5 spacings
26.0 ?.5
TYPE-25
TYPE50S
6 ?.5
52.5 ?.5
1.2
5
26.0 ?.5
1.0
TYPE-50
TYPE1WS
6 ?.5
52.5 ?.5
1.2
5
TYPE100
TYPE2WS
6 ?.5
73.0 ?.5
1.5
5
52.5 ?.5
TYPE200
-
6 ?.5
73.0 ?.5
1.5
10
unit : mm/pcs
STYLE

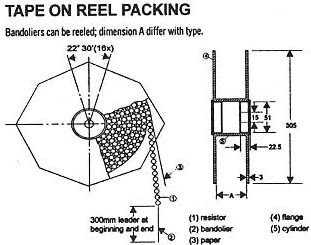

TAPE ON REEL
TAPE ON BOX
Normal
Miniature
ACROSS FLANGE (A)
QTY PER REEL
W(A)
H(B)
L(C)
QTY PER BOX
TYPE-12
TYPE25S
72
5,000
78
20
264
2,000/5,000
TYPE-25
TYPE50S
48/72
5,000
78
20
264
1,000/5,000
TYPE-50
TYPE1WS
72
2,500
78
46
264
1,000
TYPE100
TYPE2WS
95
2,000
103
70
265
1,000
TYPE200
-
95
1,000
103
85
265
1,000
SPECIAL TYPE (FORMING DIMENSIONS)
MT TYPE
STYLE
DIMENSIONS (mm)
Normal
Miniature
L
P
ФD
Фd
H
TYPE-25
TYPE50S
6.3 ?.5
10.0 ?
2.3 ?.5
0.6
±0.05
10.0 ?
TYPE-50
TYPE1WS
9.0 ?.5
12.5 ?
3.2 ?.5
0.6
±0.05
10.0 ?
TYPE100
TYPE2WS
11.5 ?.0
15.0 ?
4.5 ?.5
0.8
±0.05
12.5 ?
TYPE200
TYPE3WS
15.5 ?.0
20.0 ?
5.0 ?.5
0.8 ?.05
15.0 ?
MB TYPE
STYLE
DIMENSIONS (mm)
Normal
Miniature
L
P
ФD
Фd
H 1
H 2
t
TYPE-25
TYPE50S
6.3 ?.5
10.0 ?
2.3 ?.5
0.6±0.05
6.0 ?
5.0 ?
1.2 ?.2
TYPE-50
-
9.0 ?.5
12.5 ?
3.2 ?.5
0.6±0.05
6.0 ?
5.0 ?
1.2 ?.2
-
TYPE1WS
9.0 ?.5
12.5 ?
3.2 ?.5
0.8±0.05
6.0 ?
5.0 ?
1.4 ?.2
TYPE100
TYPE2WS
11.5 ?.0
15.0 ?
4.5 ?.5
0.8±0.05
6.0 ?
5.0 ?
1.4 ?.2
TYPE200
TYPE3WS
15.5 ?.0
20.0 ?
5.0 ?.5
0.8?.05
10.0 ?
5.0 ?
1.4 ?.2
TYPE300
TYPE5WS
24.5 ?.0
30.0 ?
8.0 ?.5
0.8?.05
15.0 ?
5.0 ?
1.4 ?.2
TYPE500
-
24.5 ?.0
30.0 ?
8.0 ?.5
0.8?.05
15.0 ?
5.0 ?
1.4 ?.2
FT TYPE
STYLE
DIMENSIONS (mm)
Normal
Miniature
L
P
ФD
Фd
h
H max
E max
TYPE100
TYPE2WS
11.5 ?.0
6 ?
4.5 ?.5
0.8 ±0.05
5.0 ?
20
3.5
TYPE200
TYPE3WS
15.5 ?.0
6 ?
5.0 ?.5
0.8 ?.05
5.0 ?
25
3.5
TYPE300
TYPE5WS
24.5 ?.0
6 ?
8.0 ?.5
0.8 ?.05
5.0 ?
35
3.5
TYPE500
-
24.5 ?.0
6 ?
8.0 ?.5
0.8 ?.05
5.0 ?
35
3.5
FK TYPE
FF TYPE
KK TYPE
STYLE
DIMENSIONS (mm)
Normal
Miniature
L
P
ФD
Фd
h
H max
E max
TYPE100
TYPE2WS
11.5 ?.0
6 ?
4.5 ?.5
0.8 ±0.05
10.0 ?
25
3.5
TYPE200
TYPE3WS
15.5 ?.0
6 ?
5.0 ?.5
0.8 ?.05
10.0 ?
30
3.5
MT Type Forming for Taping
(Rated Watts 1/6W size only)
PN Type Forming for Taping
(Rated Watts 1/4W size only)
