FCR Flame Proof Series
|
| FCR Series Flame-Proof
Type Carbon Film Resistors |
| CARBON
FILM RESISTORS FLAME-PROOF TYPE FCR Series |
| 1/4W,
1/2W, 1W, 2W, 3W FCR-25, FCR-50, FCR-100, FCR-200, FCR-300 |
|
INTRODUCTION |
The FCR series
flame-proof Carbon Film Resistors are manufactured by Coating a
homogeneous film of pure carbon on high grade ceramic rods,
resistance less than 10 Ω have an electroless deposited nickel
film, and are coated with layers of gray color flame-proof
lacquer.
These resistors meet overload tests in accordance with UL
specification |
|
 |
|
FEATURES |
- lower cost and prompt deliver.
- High power-to size ratio for
significant space savings.
- Complete flameproof
construction-UL 1412.
- Excellent long-term stability.
- Wide resistance range : 1Ω ~ 10MΩ
- Standard tolerance : ?%
|
|
DIMENSIONS:
|
|
STYLE |
DIMENSION (mm) |
POWER RATING
(Watt) |
|
L |
ФD |
H |
Фd |
| FCR-25
|
6.3
?.5 |
2.3
?.3 |
28
? |
0.6
?.05 |
1/4W |
|
FCR-50 |
9 ?.5 |
3.2 ?.3 |
26 ? |
0.6 ?.05 |
1/2W |
| FCR-100
|
11.5 ?.0 |
4.5 ?.5 |
35 ? |
0.8 ?.05 |
1W |
|
FCR-200 |
15.5 ?.0 |
5.0 ?.5 |
32 ? |
0.8 ?.05 |
2W |
| FCR-300
|
17.5 ?.0 |
6.5 ?.5 |
28 ? |
0.8 ?.05 |
3W |
|
|
ELECTRICAL CHARACTERISTICS |
|
Style |
FCR-25 |
FCR-50 |
FCR-100 |
FCR-200 |
FCR-300 |
- |

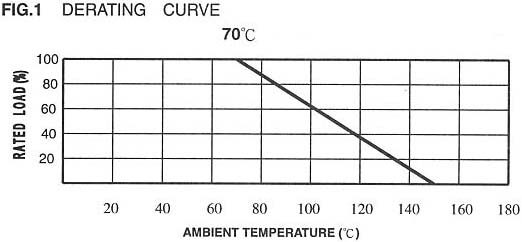

| Power Rating
70°C |
1/4W |
1/2W |
1W |
2W |
3W |
- |
|
Operating Temp. Range |
-55°C ~ +155°C |
| Max. Working
Voltage |
250V |
350V |
500V |
500V |
600V |
- |
|
Max. Overload Voltage |
500V |
700V |
1000V |
1000V |
1000V |
- |
| Dielectric
Withstanding Voltage (AC) |
500V |
700V |
1500V |
1500V |
1500V |
- |
|
Max. Intermittence Overload
Voltage |
750V |
1000V |
1500V |
2000V |
2000V |
- |
T.C.R.
(PPM) |
FCR-25 /FCR-50 |
FCR-100 /FCR-200 /FCR-300
|
| 100K Ω down
|
100KΩ ~1MΩ |
1MΩ up |
100K Ω down |
100KΩ
~1MΩ |
1MΩ up |
| +350/-500
|
+350/-700
|
+350/-1000
|
+350PPM |
+350/-500 |
+350/-1000 |
* The listed
resistance range for standard resistance, below or over this
resistance is on request. |
|

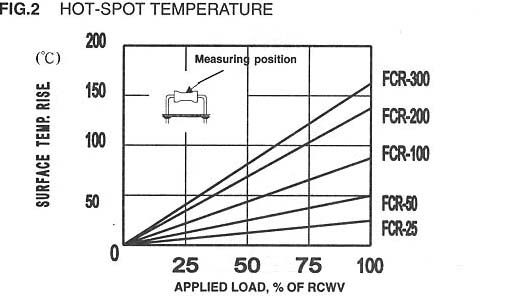

ENVIRONMENTAL CHARACTERISTICS |
|
PERFORMANCE TEST |
TEST METHOD |
APPRAISE |
|
Short Time Overload |
JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds |
?0.75%+0.05 Ω) |
|
Dielectric Withstanding V. |
JIS-C-5202 5.7 : in V-Block for 60
seconds |
By Type |
|
Temperature Coefficient |
JIS-C-5202 5.2 : -55°C →+155°C
|
By
Type |
|
Insulation Resistance |
JIS-C-5202 5.6 : in V-Block |
?000 M Ω |
|
Solderability |
JIS-C-5202 6.5 : 235°C for 5 ?.5 seconds |
95%
min. coverage |
|
Resistance to Solvent |
JIS-C-5202 6.9 : Trichroethance
for 1 min. with ultrasonic |
no deterioration |
|
Terminal Strength |
Direct load for 10 sec. In the direction of the terminal leads
|
≥2.5KG/24.5N |
|
Pulse Overload |
JIS-C-5202 5.8 : 4 time RCWV 10000
cycles(1 sec.on, 25 sec.off) |
?2%+0.05 Ω) |
| Load
Life in Humidity |
JIS-C-5202 7.9 : 40 ?°C, 90→95%
RH at RCWV for 1000 hrs
(1.5hrs. on, 0.5 hrs. off) |
?3%+0.05 Ω) |
|
Load Life |
JIS-C-5202 7.10 : 70°C at RCWV for
1000hrs (1.5hrs.on, 0.5hrs.off) |
?3%+0.05 Ω) |
|
Temperature Cycling |
JIS-C-5202 7.4 : 65°C→ room temp.→150
°C→ room temp. for 5 cycles. |
?1%+0.05 Ω) |
|
Soldering Heat |
JIS-C-5202 6.4 : 350 ?0°C for 3
?.5 seconds |
?1%+0.05 Ω) |
|
 |
|
