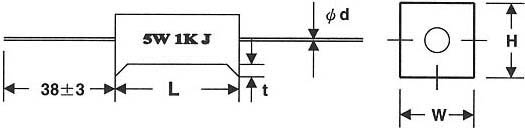

| PERFORMANCE TEST |
TEST METHOD |
APPRAISE |
| Short Time Overload |
JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds |
±(2%+0.05 Ω) |
| Dielectric Withstanding V. |
JIS-C-5202 5.7 : in V-Block for 60 seconds |
By Type |
| Temperature Coefficient |
JIS-C-5202 5.2 : -55 o C ~+155 o C |
MAX. 300ppm/ o C |
| Insulation Resistance |
JIS-C-5202 5.6 : in V-Block |
± 1000 M Ω |
| Solderability |
JIS-C-5202 6.5 : 235 o C for 5 ±0.5 seconds |
95% min. coverage |
| Resistance to Solvent |
JIS-C-5202 6.9 : Trichroethance for 1 min. with ultrasonic |
no deterioration |
| Terminal Strength |
Direct load for 10 sec. In the direction of the terminal leads |
±2.5KG/24.5N |
| Pulse Overload |
JIS-C-5202 5.8 : 4 time RCWV 10000 cycles(1 sec.on, 25 sec.off) |
±(2%+0.05 Ω) |
| Load Life in Humidity |
JIS-C-5202 7.9 : 40 ±2 o C, 90~95% RH at RCWV for 1000 hrs
(1.5hrs. on, 0.5 hrs. off) |
±(5%+0.05 Ω) |
| Load Life |
JIS-C-5202 7.10 : 70 o C at RCWV for 1000hrs (1.5hrs.on, 0.5hrs.off) |
±(5%+0.05 Ω) |
| Temperature Cycling |
JIS-C-5202 7.4 : 65 o C~room temp.~150 o C~room temp for 5 cycle |
±(2%+0.05 Ω) |
| Soldering Heat |
JIS-C-5202 6.4 : 350 ±10 o C for 3 ±0.5 seconds |
±(1%+0.05 Ω) |
