KNY 立式型 |
| WIRE WOUND RESISTORS, FLAMEPROOF, RESIN PAINT, KN |
|
Wire wound resistors are made by winding the resistance wire on the alkaliless ceramic core, then coated with silicon resin or nonflame paint, capable of making low tolerance resistors. |
|
FEATURES |
- Super heat dissipation; small linear temperature coefficient.
- Instant overload capability; low noise figure and without annual shift on resistance value.
- Flameproof, light weight, price is lower than enamel types which ones are produced in high temperature.
|
|
 |
| HOW TO ORDER
|
 |
- common code for wire wound resin paint
- rated power
- resistance value
- tolerance (J:5%)
- package (Bulk. Tape in box & Tape & reel)
|
| Type |
Dimension (mm) |
Resistance
Range |
Dielectric Withstanding Voltage |
| KNY |
D ±1 |
L ±1.5 |
P ±1.5 |
H ±1 |
B ±0.5 |
| 5W |
8.5 |
25 |
15 |
21.5 |
6.5 |
0.5 Ω~390 Ω |
500V |
| 7W |
8.5 |
32 |
22 |
21.5 |
6.5 |
0.5 Ω~1.5 Ω |
800V |
| 10W |
8.5 |
53 |
42.5 |
21.5 |
6.5 |
0.5 Ω~2.2 Ω |
1000V |
|

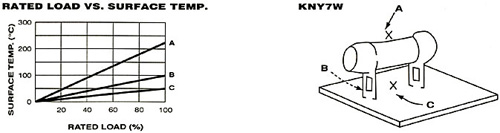

| Test Items |
Condition |
Spec |
| Resistance Temp. Coeff. |
-5 o C~200 o C |
±300PPM/ o C |
| Short Time Overload |
10 times of rated wattage for 5 sec. |
±2% |
| Rated Load |
Rated wattage for 30 min. |
±0.5% |
| Insulation Resistance |
500V |
1,000M Ω |
| Load life |
70 o C on-off cycle 1000hrs. |
±3% |
| Moisture-proof Load Life |
40 o C 95% RH on-off cycle 1000hrs. |
±3% |
| Incombustibility |
16 times of rated wattage for 5 min. |
not flamed |
* Total resistance : ( △R% + 0.05 ±) |
|
