FCR 不然型 |
| FCR Series Flame-Proof Type Carbon Film Resistors |
| CARBON FILM RESISTORS FLAME-PROOF TYPE FCR Series |
| 1/4W, 1/2W, 1W, 2W, 3W FCR-25, FCR-50, FCR-100, FCR-200, FCR-300 |
| INTRODUCTION |
The FCR series flame-proof Carbon Film Resistors
are manufactured by Coating a homogeneous film of pure carbon
on high grade ceramic rods, resistance less than 10
have an electroless deposited nickel film, and are coated with
layers of gray color flame-proof lacquer.
These resistors meet overload tests in accordance with UL specification |
|
 |
| FEATURES |
- lower cost and prompt deliver.
- High power-to size ratio for significant space savings.
- Complete flameproof construction-UL 1412.
- Excellent long-term stability.
- Wide resistance range : 1
~ 10m
- Standard tolerance : 5%
|
| DIMENSIONS: |
| STYLE |
DIMENSION (mm) |
POWER RATING
(Watt) |
| L |
 D
|
H |
d
|
| FCR-25 |
6.3  0.5
|
2.3 0.3
|
28 2
|
0.6 0.05
|
1/4W |
| FCR-50 |
9 0.5
|
3.2 0.3
|
26 2
|
0.6 0.05
|
1/2W |
| FCR-100 |
11.5 1.0
|
3.2 0.5
|
35 2
|
0.8 0.05
|
1W |
| FCR-200 |
15.5 1.0
|
4.5 0.5
|
32 2
|
0.8 0.05
|
2W |
| FCR-300 |
17.5 1.0
|
6.5 0.5
|
35 2
|
0.8 0.05
|
3W |
|

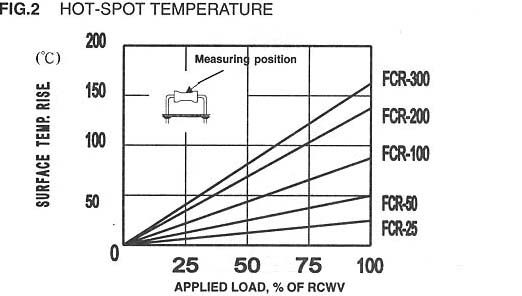

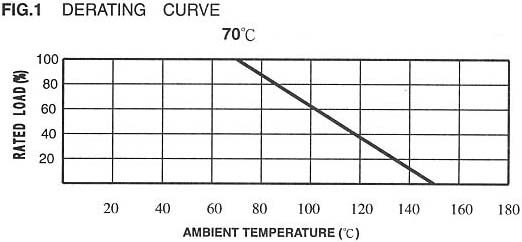

| ENVIRONMENTAL CHARACTERISTICS |
| PERFORMANCE TEST |
TEST METHOD |
APPRAISE |
| Short Time Overload |
JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds |
(0.75%+0.05
)
|
| Dielectric Withstanding V. |
JIS-C-5202 5.7 : in V-Block for 60 seconds |
By Type |
| Temperature Coefficient |
JIS-C-5202 5.2 : -55 o C ~+155 o C |
By Type |
| Insulation Resistance |
JIS-C-5202 5.6 : in V-Block |
1000 M |
| Solderability |
JIS-C-5202 6.5 : 235 o C for 5 0.5
seconds |
95% min. coverage |
| Resistance to Solvent |
JIS-C-5202 6.9 : Trichroethance for 1 min. with ultrasonic |
no deterioration |
| Terminal Strength |
Direct load for 10 sec. In the direction of the terminal leads |
2.5KG/24.5N
|
| Pulse Overload |
JIS-C-5202 5.8 : 4 time RCWV 10000 cycles(1 sec.on, 25 sec.off) |
(2%+0.05
)
|
| Load Life in Humidity |
JIS-C-5202 7.9 : 40 2
o C, 90~95% RH at RCWV for 1000 hrs
(1.5hrs. on, 0.5 hrs. off) |
(3%+0.05
)
|
| Load Life |
JIS-C-5202 7.10 : 70 o C at RCWV for 1000hrs (1.5hrs.on, 0.5hrs.off) |
(3%+0.05
)
|
| Temperature Cycling |
JIS-C-5202 7.4 : 65 o C~room temp.~150 o C~room temp for 5 cycle |
(1%+0.05
)
|
| Soldering Heat |
JIS-C-5202 6.4
: 350 10
o C for 3 0.5
seconds |
(1%+0.05
)
|
|
|
|
