塑膠薄膜電容器 |

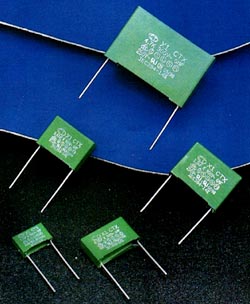

| Metallized Polypropylene Film Capacitors |
| For Interference Suppression and Across-The-Line, Class X1 |
| Applications |
- Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
- Available for EMI filer.
- Switching power supply applications.
- Business machines applications, such as:
typewriters, adding machines, computer displays and monitors.
- Household appliances, such as: mixers, fans, coffee grinders audio and TV circuits.
- Thyristor and triac appliances, such as: dimmers.
|
|
 |
| Features |
- Provides interference suppression, all safety approval
- Overvoltage stress withstanding
- Self-healing properties
- Active and passive flame retardent
|
| Diagram of Dimensions |
(Unit=mm) |
|
Pitch and Lead Dimensions (MM)
| W |
13.0 |
18.0 |
26.5 |
31.5 |
37.0 |
51.0 |
| P |
10.0 |
15.0 |
22.5 |
27.5 |
32.5 |
47.5 |
| d |
0.6 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
| Specifications |
- Climate Category: In accordance with DIN40040 GMF
a)G=Minimum Limit Temperature ... -40 Ω
b)M=Maximum Limit Temperature ... +100 Ω
c)F=Humidity category ... Average relative humidity ± 75%, 95% for 30 days, per year, continuously : 85% for the remaining days, occasionally.
- Rated Voltage: ............. 250V/300 V.AC, 50~60Hz
- Capacitance Range: .............0.0047~4.7 μF
- Capacitance Tolerance: J( ± 5%), K( ± 10%), M( ± 20%)
- Withstand Voltage:
a)Between Terminals.. I200V.AC, 60Hz or 2200V.DC Is.
b)Between Terminals and Case.......2200V.AC, 60Hz 60s.
- Dissipation Factor:
a) ≧0.1% at 1KHz and20 Ω
b) ≧ 0.3% at 10KHz and20 Ω
- Insulation Resistance:
a)Between Terminals ...
≧3 x 10 4 M Ω for C ≧0.33 μF; ±1 x 10 6 M Ω/ μF for C> 0.33 μF;
b)Between Terminals and Case.... ±3 x 10 4 M Ω Measured at 100 ± 15V.DC, 60s 20 Ω
|
|
