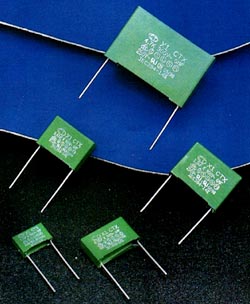

Metallized Polypropylene Film Capacitors
Metallized Polypropylene Film Capacitors
For Interference Suppression and Across-The-Line, Class X1
Applications
  • Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
  • Available for EMI filter.
  • Switching power supply applications.
  • Business machines appliance, such as:
    typewriters, adding machines, computer displays and monitors.
  • Household appliances, such as: mixers, fans, coffee grinders audio and TV circuits.
  • Thyristor and triac appliances, such as: dimmers.
Features
  • Provides interference suppression, all safety approval
  • Over voltage stress withstanding
  • Self-healing properties
  • Active and passive flame retardent
Diagram of Dimensions (Unit=mm)

Pitch and Lead Dimensions (MM)

W 13.0 18.0 26.5 31.5 37.0 51.0
P 10.0 15.0 22.5 27.5 32.5 47.5
d 0.6 0.8 0.8 0.8 0.8 0.8

Specifications
  • Climate Category: In accordance with DIN40040 GMF
    a)G=Minimum Limit Temperature ... -40 Ω
    b)M=Maximum Limit Temperature ... +100 Ω
    c)F=Humidity category ... Average relative humidity ?/span> 75%, 95% for 30 days, per year, continuously : 85% for the remaining days, occasionally.
  • Rated Voltage: ............. 250V/300 V.AC, 50~60Hz
  • Capacitance Range: .............0.0047~4.7 ?/span>F
  • Capacitance Tolerance: J( ?/span> 5%), K( ?/span> 10%), M( ?/span> 20%)
  • Withstand Voltage:
    a)Between Terminals.. I200V.AC, 60Hz or 2200V.DC Is.
    b)Between Terminals and Case.......2200V.AC, 60Hz 60s.
  • Dissipation Factor:
    a) ≥0.1% at 1KHz and 20Ω
    b) ≥ 0.3% at 10KHz and 20Ω
  • Insulation Resistance:
    a)Between Terminals ...
    ≥3 x 10 4 M Ω for C ≥0.33 μF; ?/span>1 x 10 6 M Ω/ μF for C> 0.33 μF;
    b)Between Terminals and Case.... ?/span>3 x 10 4 M Ω Measured at 100 ?/span> 15V.DC, 60s 20 Ω
