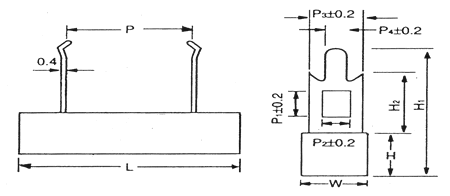

PERFORMANCE TEST |
TEST
METHOD |
APPRAISE
|
| Short
Time Overload |
JIS-C-5202 5.5 : 2.5 times RCWV for 5 seconds |
?2%+0.05 Ω) |
|
Dielectric Withstanding V. |
JIS-C-5202 5.7 : in V-Block for 60
seconds |
By Type |
|
Temperature Coefficient |
JIS-C-5202 5.2 : -55°C ~+155°C |
MAX.
300ppm/ °C |
|
Insulation Resistance |
JIS-C-5202 5.6 : in V-Block |
≥1000 M Ω |
|
Solderability |
JIS-C-5202 6.5 : 235°C for 5 ?.5 seconds |
95%
min. coverage |
|
Resistance to Solvent |
JIS-C-5202 6.9 : Trichroethance
for 1 min. with ultrasonic |
no deterioration |
|
Terminal Strength |
Direct
load for 10 sec. In the direction of the terminal leads |
≥2.5KG/24.5N |
|
Pulse Overload |
JIS-C-5202 5.8 : 4 time RCWV 10000
cycles(1 sec.on, 25 sec.off) |
?2%+0.05 Ω) |
| Load
Life in Humidity |
JIS-C-5202 7.9 : 40 ?°C, 90~95% RH at RCWV for 1000 hrs
(1.5hrs. on, 0.5 hrs. off) |
?5%+0.05 Ω) |
|
Load Life |
JIS-C-5202 7.10 : 70°C at RCWV for
1000hrs (1.5hrs.on, 0.5hrs.off) |
?5%+0.05 Ω) |
|
Temperature Cycling |
JIS-C-5202 7.4 : 65°C→ room temp.→150°C→ room temp for 5 cycles. |
?2%+0.05 Ω) |
|
Soldering Heat |
JIS-C-5202 6.4 : 350 ?0°C for 3
?.5 seconds |
?1%+0.05 Ω) |
