Inductor Categories > WOUND CHIP INDUCTORS(HIGH FREQ) > CLH SERIES


MULTILAYER

CHIP INDUCTOR

HIGH FREQUENCY (CLH Series)

CLH Series

Wildex high frequency multilayer ceramic chip inductor is formed without wound wire.
Monolithic Laminated Structure

Feature
  • Excellent Q factor and SRF characteristics
  • Cost Effective
  • Small size of 1005/1608 is suitable for small portable equipment.
  • Supports operating frequency bands up to 6GHz with nominal inductance values from 1.0nH To 470nH.
Applications
  • RF Resonance and Impedance Matching Circuit
  • RF and wireless communication
  • Information technology equipments, computers, telecommunications, radar detectors, automotive electronics, cellular phones, pagers, PDAs, keyless remote systems.
  • Use in L-C filter configurations

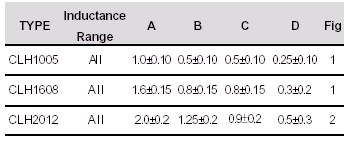

Dimensions in mm

Product Identification
