NLC SERIES

MOLDING TYPE

WIRE WOUND CHIP INDUCTOR (NLC Series)

NLC Series

The characteristics of this series perform low Rdc and carry large current.
The size format is from 2520 (1008) ~ 5650 (2220).
Best for power supply applications such as PC, conveyable telephone, and others


Feature
  • Very strong solderability by flow soldering, soldering iron or wave soldering.
  • Highly accurate dimensions, can be mounted automatically.
  • Terminals are highly resistant to pull forces.
  • Highly resistant to mechanical shocks and pressure.
  • Highly reliable in environments of sudden temperature change and humidity. Super Q characteristics.
Applications
  • Microtelevisions, liquid crystal televisions, video cameras, portable VCRs, car radios, car stereos, thin tape radios, television tuners, mobile telephones, radio and other electronic devices.
Shapes and Dimensions (NL322522 Series)

Shapes and Dimensions (NL453232 Series)

Shapes and Dimensions (NL565050 Series)

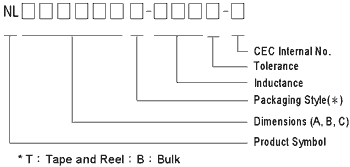

Product Identification

Molding Type Wire Wound Chip Inductors /High Curren/ 'NLC Series
NLC 453232Series   NLC Reliability Test
NLC 565050 Series   NLC Packaging
