NL Series

MOLDING TYPE

WIRE WOUND CHIP INDUCTOR (NL Series)

NL Series

These revolutionary, highly reliable wound chip inductors for automatic mounting, have been developed in response to the trend toward high density in electronic equipment.
With metal terminals and a body of heat resistant resin, these inductors offer many superior features.

Feature
  • Very strong solderability by flow soldering, soldering iron or wave soldering.
  • Highly accurate dimensions, can be mounted automatically.
  • Terminals are highly resistant to pull forces.
  • Highly resistant to mechanical shocks and pressure.
  • Highly reliable in environments of sudden temperature change and humidity. Super Q characteristics.
Applications
  • Microtelevisions, liquid crystal televisions, video cameras, portable VCRs, car radios, car stereos, thin tape radios, television tuners, mobile telephones, radio and other electronic devices.
Shapes and Dimensions (NL322522 Series)

Shapes and Dimensions (NL453232 Series)

Shapes and Dimensions (NL565050 Series)

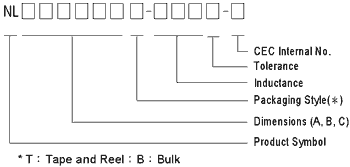

Product Identification
