Wildex's SMD
multi-layered chip inductors provide a cost effective solution
for densely packed PC board designs. Using Ferrite or CL / CLH
series ceramic materials are available in broadband and high
frequency circuits. The ferrite structure is suited for lower
frequency applications and the ceramic one, CLH series, is
designed to meet the needs of higher frequency circuits.
Feature
High mounting density of compact
circuit due to crosstalk elimination that results from a closed
magnetic flux in a ferrite material.
Suitable for flow and re-flow
soldering

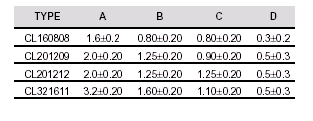

Available in 5 sizes
Applications
Personal computers, HDDs, or
other various electronic appliances.
Any general circuit of portable
equipment in which compact size and high mounting densities are
required.
