FB SERIES

SURFACE

MOUNT BEADS ( FB Series)

FB series

Wildex surface mount beads are similar impedance levels to leaded shield beads.
These beads have high current carrying capacities and compact sizes which are good for use with flow or reflow soldering processes.

Feature
  • Special designs for surface mounting equipment, are available in various sizes which allow them to wide rang of application and usage.
  • High resistance fights heat and humidity.
Applications
  • For Stereo, Car radio, Mobile telephone, VCRs, Computer disk drive and PC board to filter the EMI from the outside.

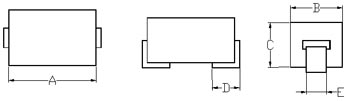

Shapes and Dimensions (Figure 1)

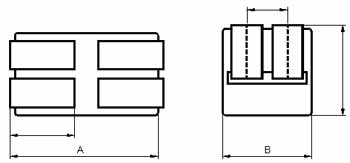

Shapes and Dimensions (Figure 2)

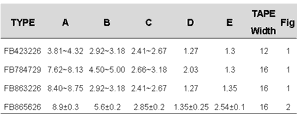

Dimension in mm

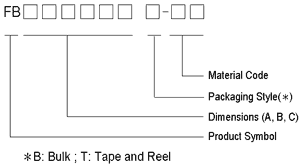

Product Identification
