GB SERIES

MULTILAYER
FERRITE CHIP BEAD (GB Series)



GB series, for mid current use



Wildex offers hundreds of multi-layered ferrite chip beads with various sizes, frequency characteristics, and a board range of impedance values to provide a powerful solutions for EMI problems.

Three formulas of ferrite comprise several types of EMI suppression chip beads that are classified into six categories- SB, GB, UP, NB, and BA series.



Feature



  • Exhibiting high impedance with sharp increase at high speed signal frequencies with minimal diminishing the desired wave form.
  • Suitable for flow and reflow soldering
  • Available in 4 sizes



Applications



  • High-speed circuits for computer & peripheral equipments and communication devices.
  • Cellular phone
  • Suitable for circuits with unstable ground









Dimension in mm

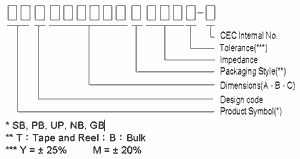

Marking
