WIRE WOUND CHIP INDUCTOR

HIGH FREQUENCY (LCN Series)

LCN Series

Wildex is the leading manufacturer of chip inductors in Taiwan. All of our manufacturing plants are ISO-9002 and QS-9000 certified and our stringent quality system ensures that all products fully meet customer requirement.
Based on our technical expertise, we have introduced a full series of miniature chip inductors. They are designed for wide application in mobile phone, base station, GPS receiver, cable modem, set top box, WLL, xDSL, etc. We welcome you to contact us for requirement of our standard series or custom design service.

Feature
  • Miniature SMD type chip inductor for fully automated assembly.
    ● Wide Inductance range(1.6nH ~ 680uH) for broad band and RF application.
    ● Excellent Solderability.
    ● Outstanding endurance from pull-up force, mechanical shock and pressure.
    ● Ceramic series operating temperature from -40℃ to 125℃.
Applications (LCN 0603 Series)
  • Ceramic body and wire wound construction provide highest SRFs available in 0603 size.
  • These ultra - compact inductors provided exceptional Q values, even at high frequencies.
Applications (LCN 0805 Series)
  • Ceramic body and Wire wound construction provide highest SRFs available in 0805 size.
  • These ultra - compact inductors provided exceptional Q values, even at high frequencies.
Applications (LCN 1008 Series)
  • "L"series chip inductors have been designed especially for the needs of today's high frequency designer.
  • Their ceramic construction delivers the highest possible SRFs as well as excellent Q values.
  • The non-magnetic coil form also assures the utmost in thermal stability, predictability and batch consistency.

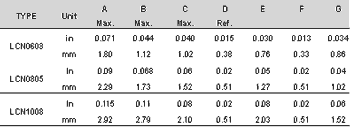

Shapes and Dimensions


TERMINAL WRAPAROUND：
LCN0603：Approx. 0.007"/0.18mm BOTH ENDS
LCN0805：Approx. 0.015"/0.38mm BOTH ENDS
LCN1008：Approx. 0.015"/0.38mm BOTH ENDS

Shapes and Dimensions

Product Identification
