LEAD TAPING & PACKING OF RADIAL CAPACITOR
EIA STANDARD RS-296-D
*Reel label consists of:
  1. Component type
  2. Electrical values
  3. Manufacturer's name
  4. Data
  5. Component quantity

CAPACITOR BODY DIAMETER CAPACITOR PITCH "A" ±0.5mm (0.020")
≧ 5mm ( ≧ 0.197")
5.01-10mm (0.197-0.394")
10.01-15mm (0.394-0.591") 		5mm or 0.200"
10mm or 0.400"
15mm or 0.600"

CAPACITOR BODY LENGTH INSIDE TAPE SPACING "B" ±1.5mm (0.059")
≧ 16.50mm ( ≧ 0.65")
16.51-28.45mm (0.651-1.12")
28.46-37.00mm (1.121-1.45") 		52.44mm or 2.062"
63.5 mm or 2.500"
73.0 mm or 2.874"

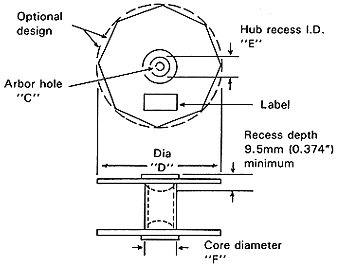

C D E F
EIA Std.
RF Spec. 		13.9-38.1mm(0.54-1.50")
14.50mm (0.570") 		76.2-355.6mm (3.0-14.0")
381.0mm (15") 		28.6-78.0mm (1.126-3.071")
54.2mm (2.130") 		34.5-92.0mm (1.374'3.626")
61.0mm (2.401")

Capacitor Body Dia. Pitch Quantity pcs/reel
≧ 5.0mm
5.1-7.0mm
7.1-9.5mm 		6mm
10mm
10mm 		4,000 max
2,000 max
1,000 max
