AC RATED VOLTAGE -
FREQUENCY DERATING CHARACTERISTICS
CHARACTERISTICS
REFERENCE
RATED
VOLTAGE V FREQUENCY
NOTE :

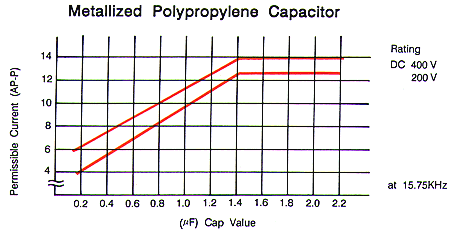

The graphs illustrated above are for reference only wave form of
current and temperature rise of capacitor are key factors to
determine permissible current. For actual application. consult our
sales represent active or sales office.
